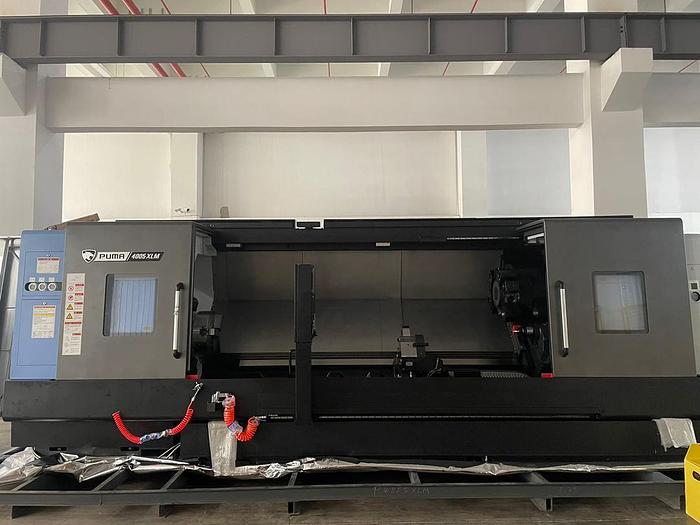

Make: DN Solutions
Model: PUMA 4005 XLM
Year: 2024, brand new machine
Max. turning diameter: 560 mm
Max. turning length: 3068 mm
Bar working diameter: 116.5 mm

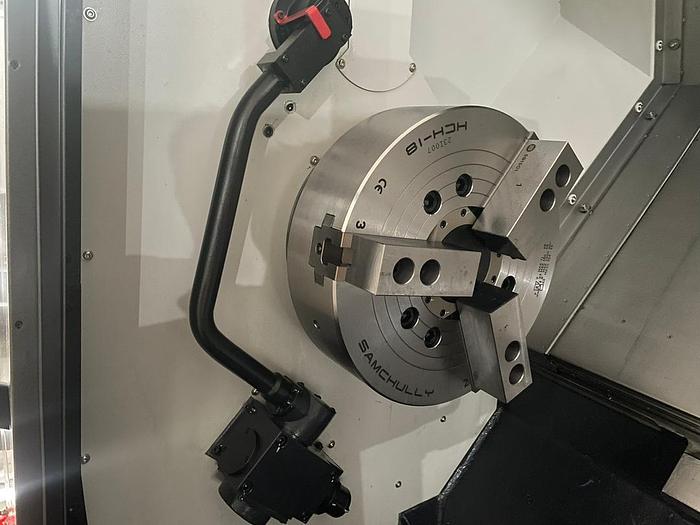

Spindle
Max. spindle speed 2.000 rpm
Spindle nose ASA A2-11
Diameter: 380 mm
Spindle through Bore: 132 mm
Max. spindle torque: 1611 Nm
Travel
Travel (X-axis): 352 (77+275) mm
Travel (Z-axis): 3180 mm
Rapid traverse (X-axis): 16 m/min
Rapid traverse (Z-axis): 20 m/min

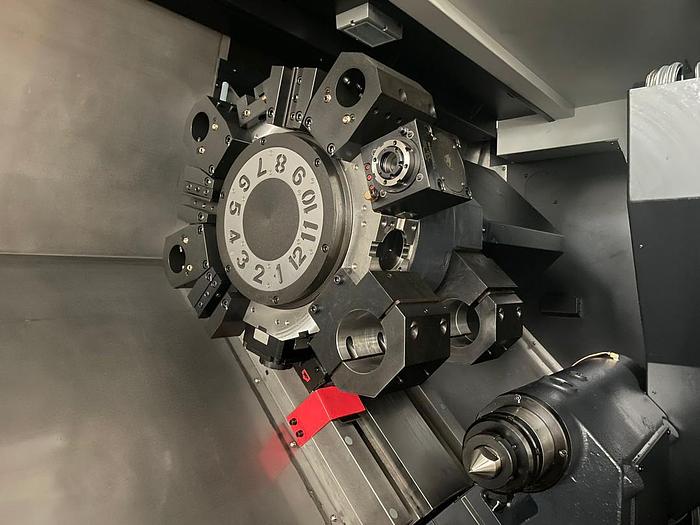

Turret
No. of tool stations: 12 st
OD tool size: 25×25 mm
Boring bar size: 60 mm
Max speed of rotary tool: 4.000 rpm
Turret Index time: 0,15 s

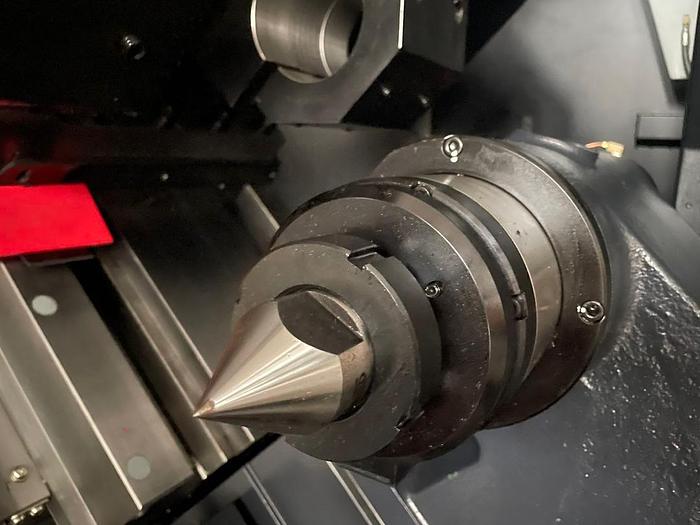

Tailstock
Tip diameter: 120 mm
Center taper MT#6 live center
Top trips: 120 mm
Maximum top thrust: 14,3 N
Control
Fanuc i Series

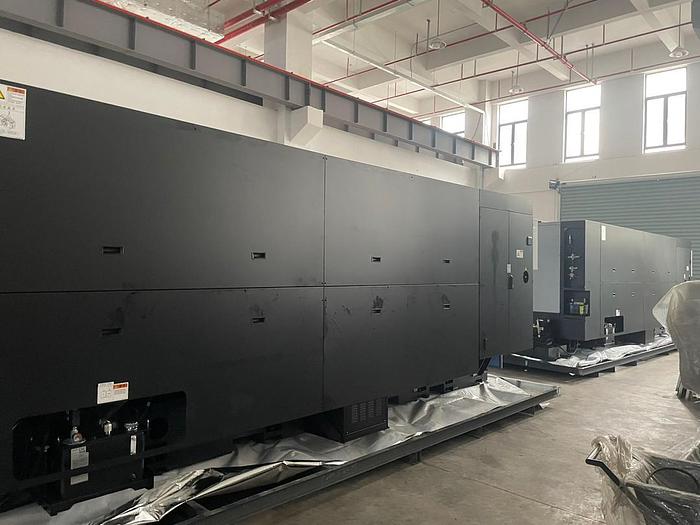

Machine dimensions
LxWxH: 7024x2276x2335 mm
Machine weight: 12.500 kg
Center saddle available upon request. Short delivery. For more information contact us.
