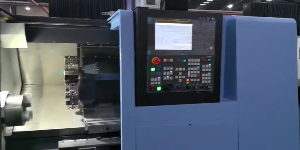

2022 DOOSAN LYNX 235 II
2022 DOOSAN LYNX 235 II
orCall +386 70 452 666
Description
Make: DOOSAN
Model: LYNX 235II
Year: 2022
Working hours: 1025 h
Chuck: 8 inch
Swing over bed : 510 mm
Swing over saddle: 290 mm
Recommended. turning diameter: 210 mm
Max. turning diameter: 320 mm
Max. turning length: 525 mm
Bar working diameter: 65 mm
Travel (X-axis): 175 mm
Travel (Z-axis): 550 mm
Rapid traverse (X-axis): 30 m/min
Rapid traverse (Z-axis): 36 m/min
No. of tools: 12 tools
Max. Spindle speed: 4.000 rpm
Control: Fanuc
Power: 15 kW
LxWxH: 2795*1620*1650 mm
Machine weight: 3.500 kg
This machine has very low hours and it is in excellent condition. It comes on stock into our warehouse on January 2025. If you want to reserve this machine, contact us.
Specifications
| Manufacturer | DOOSAN |
| Model | LYNX 235 II |
| Year | 2022 |
| Condition | Used |
| Stock Number | 00002 |
| Make | DOOSAN |
| Model | LYNX 235II |
| Year | 2022 |
| Chuck | 8 inch |
| Swing over bed | 510 mm |
| Swing over saddle | 290 mm |
| Recommended. turning diameter | 210 mm |
| Max. turning diameter | 320 mm |
| Max. turning length | 525 mm |
| Bar working diameter | 65 mm |
| Travel (X-axis) | 175 mm |
| Travel (Z-axis) | 550 mm |
| Rapid traverse (X-axis) | 30 m/min |
| Rapid traverse (Z-axis) | 36 m/min |
| No. of tools | 12 tools |
| Max. Spindle speed | 4.000 rpm |
| Control | Fanuc |
| Power | 15 kW |
| LxWxH | 2795*1620*1650 mm |
| Machine weight | 3.500 kg |
