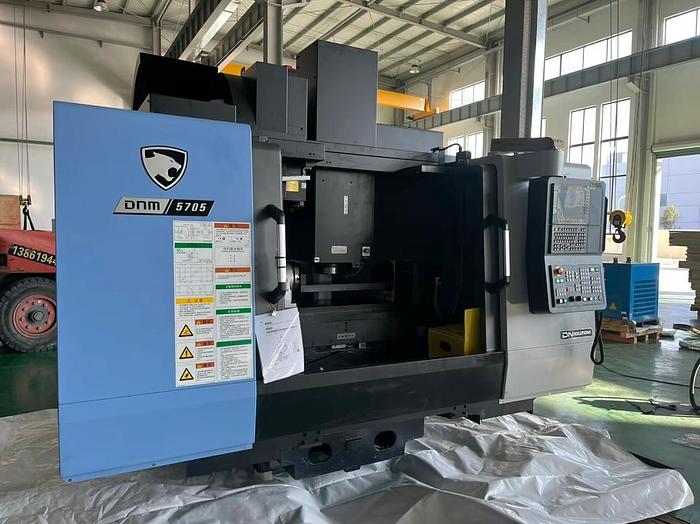

2023 DN Solutions DNM 5705

Stroke:

X-axis: 1050 mm

Y-axis: 570 mm

Z-axis: 510 mm

SPINDLE TO TABLE SURFACE 150 - 660 mm

Table

Table size: 1300 x 570 mm

Table loading capacity: 1000 kg

Spindle

Max. spindle speed: 12.000 rpm

Taper Type ISO#40 7/24

Max. spindle torque 117,8 Nm

Feed rate

Rapid traverse （X/Y/Zaxis） 36/36/30 m/min

Cutting feed rate (all axes) 1-15,000 mm/min

ATC

Tool shank type: BT40

Tool storage capacity ea. 24

Max. tool diameter mm ￠80

Max. tool diameter adjacent to empty space ￠125 mm

Max. tool length 300 mm

Max. tool weight 8 kg

TOOL SELECT TYPE

Tool Change time(tool-to-tool) 1,2 s

Tool Change time(chip-to-chip) 3,2 s

Motor

Spindle motor power 11/18.5 kW

Feed motor (X/Y/Z) 1.8/1.8/3 kW

Power source

Electrical power supply (Rated capacity) 30 kVA

Fuel tank capacity

Coolant tank capacity 380 l

Gjtvz8

Machine size

Machine dimensions(L x W x H): 3110 x2413x2985 mm

Machine weight: 6500 kg

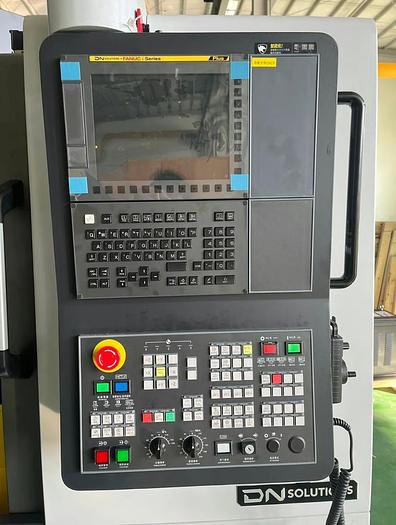

Control: FANUC OiPLUS
