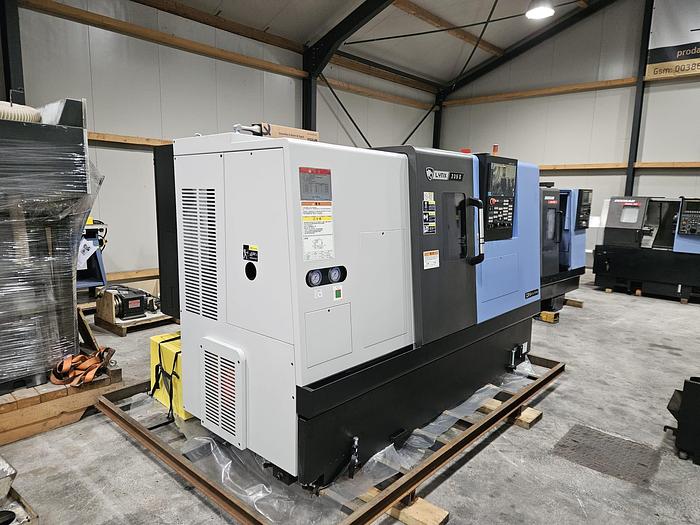

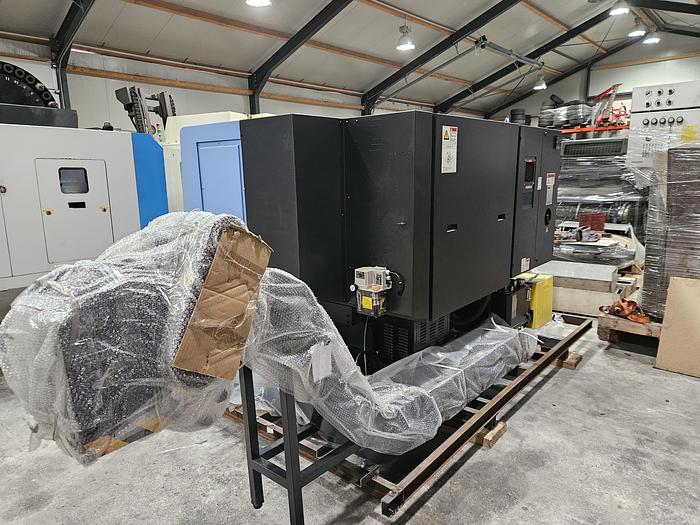

2024 DOOSAN LYNX 235 II

Swing over bed : 510 mm

Swing over saddle: 290 mm

Recommended. turning diameter: 210 mm

Max. turning diameter: 320 mm

Max. turning length: 525 mm

Bar working diameter: 65 mm

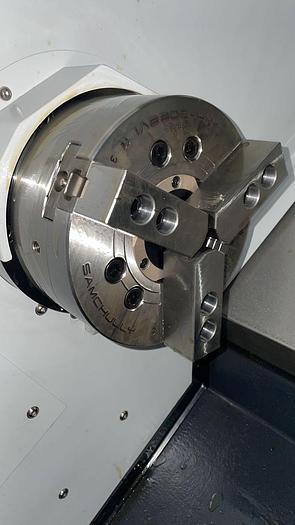

Spindle

Max. spindle speed 4.000 rpm

Spindle nose ASA A2#6

Spindle bearing

diameter(Front/rear) 110/ 100 mm

Spindle through Bore: 76 mm

Max. spindle torque: 176,7 Nm

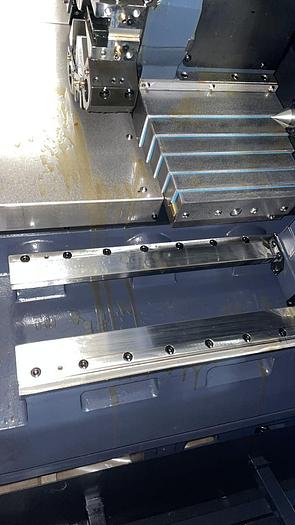

Travel

Travel (X-axis): 175 mm

Travel (Z-axis): 550 mm

Rapid traverse (X-axis): 30 m/min

Rapid traverse (Z-axis): 36 m/min

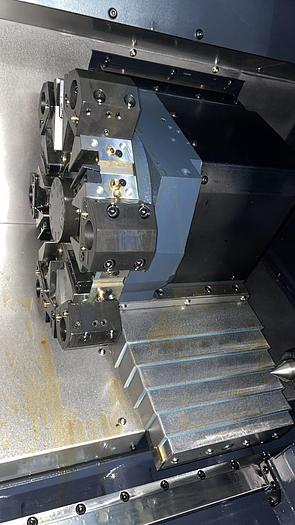

Turret

No. of tool stations: 12 st

OD tool size: 25×25 mm

Boring bar size: 40 mm

Turret Index time: 0,15 s

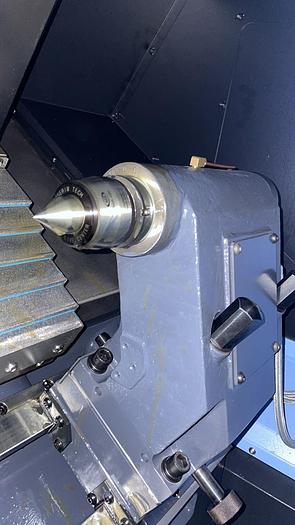

Tailstock

Tip diameter: 65 mm

Center taper MT#4

Top trips: 80 mm

Maximum top thrust: 3.6 kn

Motors

Main spindle motor power: 18.5/15 kW

Servo motor (X-axis): 1,8 kW

Servo motor (Z-axis): 1,8 kW

Electric power supply rated capacity: 19,54 Kva

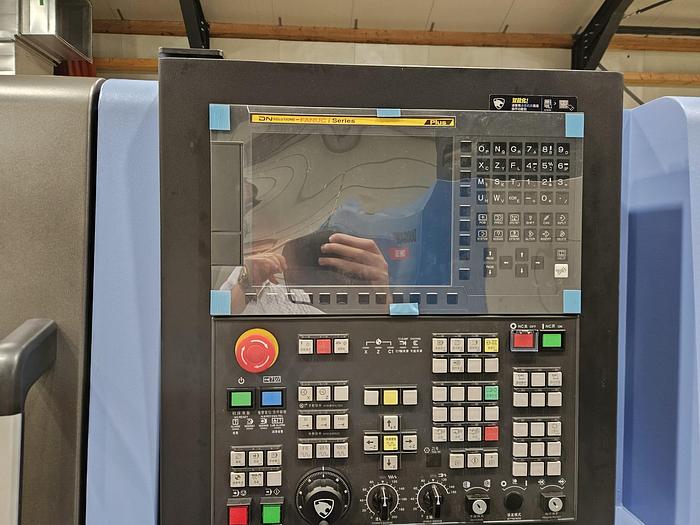

Control

Fanuc i Series

Machine dimensions

LxWxH: 2795*1620*1650 mm

Machine weight: 3.500 kg

For more information we are available.
